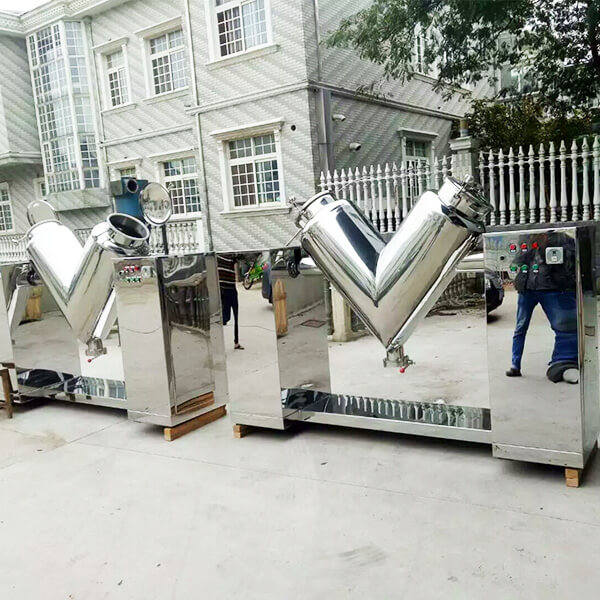

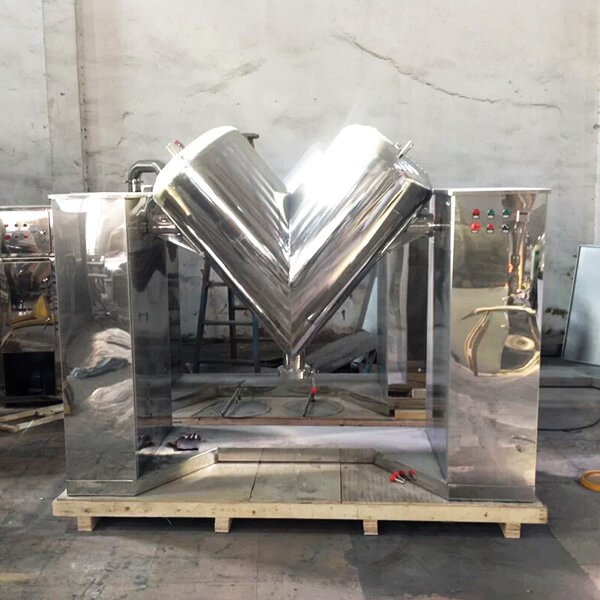

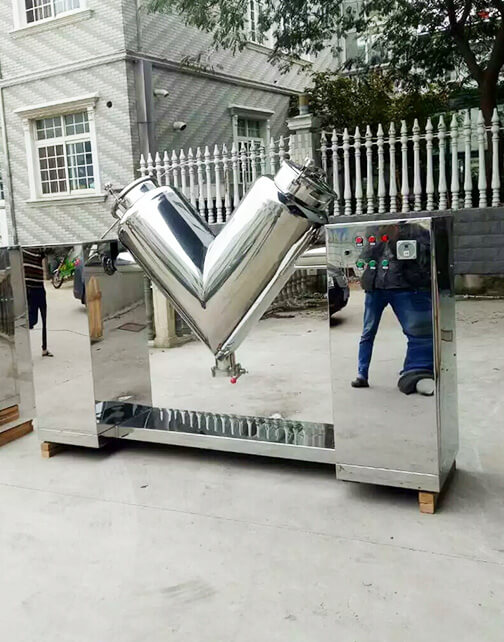

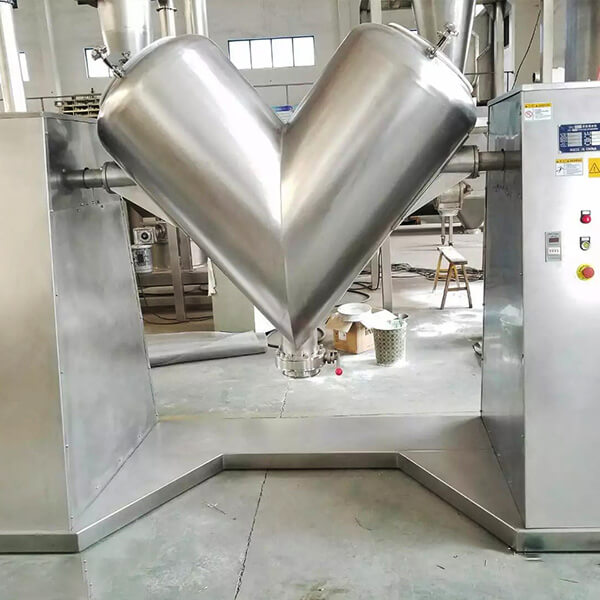

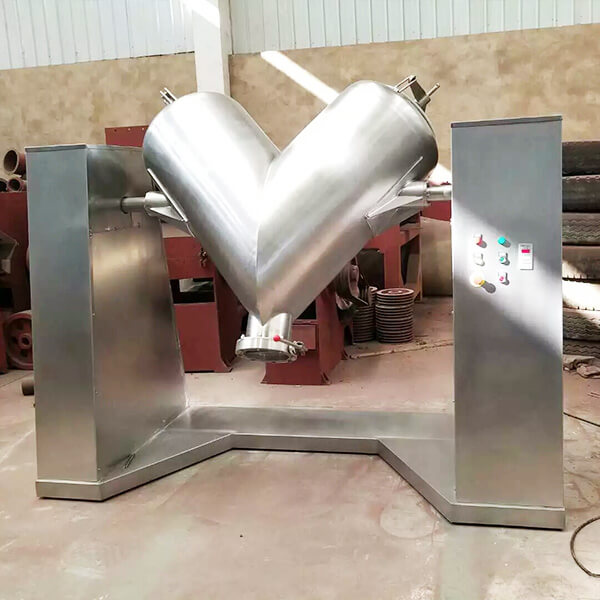

V Type Mixer
Mirror polished of inner and outer shell to meet cGMP standard.
No blind angle in the V-shells, no accumulation of materials, high speed I-bar, efficient and short mixing time.
- WhatsApp / Wechat / Phone:+86 13949003141
- E-mail:jack@9usemachine.com
Product introduction
Advantages:
01Mirror polished of inner and outer shell to meet cGMP standard.
02No blind angle in the V-shells, no accumulation of materials, high speed I-bar, efficient and short mixing time.
03Mixing uniformity can reach 99%.
04Rotating valve is equipped for discharging.
05Fully integrated motors and controls.
06Can work with vacuum feeding system to create dust-free working condition.
Working Principle:
V blender mix the material by two asymmetrical cylinder,and the gravity of material,the material is constantly gathered and scattered in the cylinder by its rotation. Usually it need to take about 5-15 minutes to make the two or more materials fully mixing uniformity.
Technical parameter
Model |
Total Volume (L) |
Loading Capacity (kg/batch) |
Rotating Height (mm) |
Mixing Time (minutes) |
Power (kw) |
V-50 | 50 | 12 | 1600 | 6-10 | 0.55 |
V-200 | 200 | 48 | 1750 | 6-10 | 1.1 |
V-300 | 300 | 72 | 1970 | 6-10 | 1.5 |
V-500 | 500 | 120 | 2270 | 6-10 | 2.2 |
V-1000 | 1000 | 240 | 2630 | 6-10 | 4 |
V-1500 | 1500 | 360 | 2820 | 6-10 | 5.5 |
V-2000 | 2000 | 480 | 3050 | 6-10 | 7.5 |
V-2500 | 2500 | 600 | 3150 | 8-12 | 11 |
V-3000 | 3000 | 720 | 3310 | 8-12 | 11 |
Product application
V mixer/V blender is designed for mixing two or more dry power or granule raw materials, such as pharmaceutical industry, chemical industry, foodstuff industry and so on.
