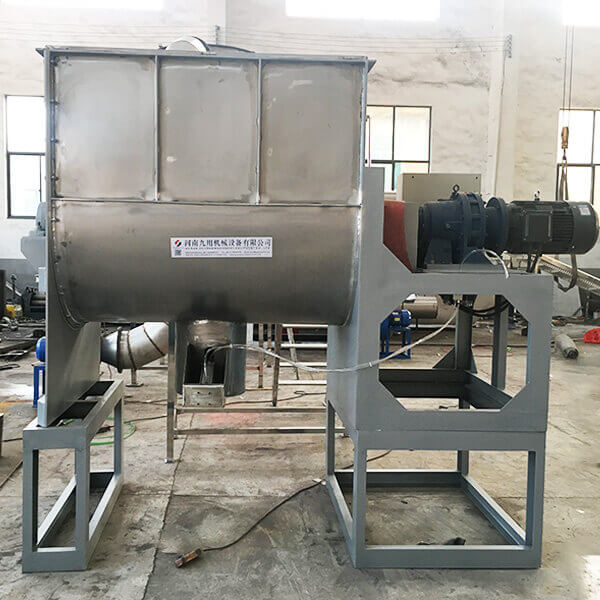

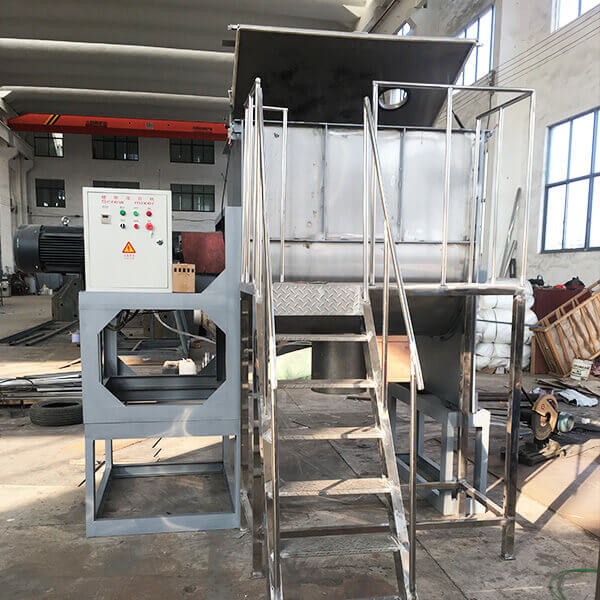

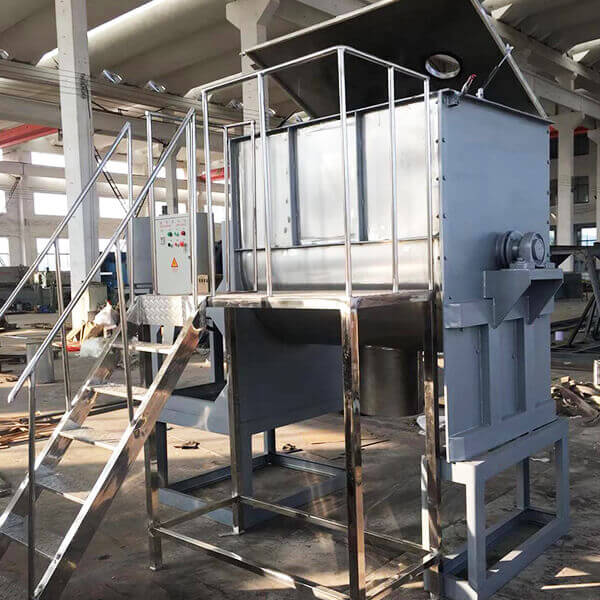

Ribbon Mixer
Horizontal tube body, inner & outer dual screw with special structure, running stable, best quality, low noise, long life, convenient installation, widly usage, with many kind of mixer structure, multiple function.
Whole machine except for motor is made of stainless steel.
- WhatsApp / Wechat / Phone:+86 13949003141
- E-mail:jack@9usemachine.com
Product introduction
The Horizontal Screw Belt Mixer is a new type, high efficiency mixing equipment, are widely used in food and chemical industry.
Main features:
01Horizontal tube body, inner & outer dual screw with special structure, running stable, best quality, low noise, long life, convenient installation, widly usage, with many kind of mixer structure, multiple function.
02Whole machine except for motor is made of stainless steel.
03With warm sheet, bearing great pressure, make easy-forming material into difficult forming after filling steam.
04For different mixing requirements, use different screw structure, rapid & thorough mixing.
05There is a split window in the body for cleaning.
06Load coefficient large, covering small surface.
Technical parameter
| Model | DH-100 | DH-300 | DH-500 | DH-1000 | DH-1500 | DH-2000 |
| Total Volume(CBM) | 0.1 | 0.3 | 0.5 | 1 | 1.5 | 2 |
| Capacity(KG) | 40 | 120 | 200 | 400 | 600 | 800 |
| Mixing time(MIN) | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 |
| Total Power(KW) | 2.2 | 5 | 5.5 | 7.5 | 11 | 15 |
| Mixing Speed(R/MIN) | 58 | 53 | 49 | 42 | 42 | 42 |
| Size(M) | 1.2*0.74*0.9 | 1.75*0.82*1.08 | 2.0*0.98*1.35 | 2.5*1.18*1.45 | 2.8*1.3*1.55 | 3.31*1.45*1.75 |
| Weight(KG) | 400 | 800 | 1000 | 1450 | 1950 | 2650 |
| Power Supply | 3P AC208-415V 50/60Hz | |||||
Product application
The Horizontal Screw Belt Mixer is a new type, high efficiency mixing equipment, are widely used in food and chemical industry.
