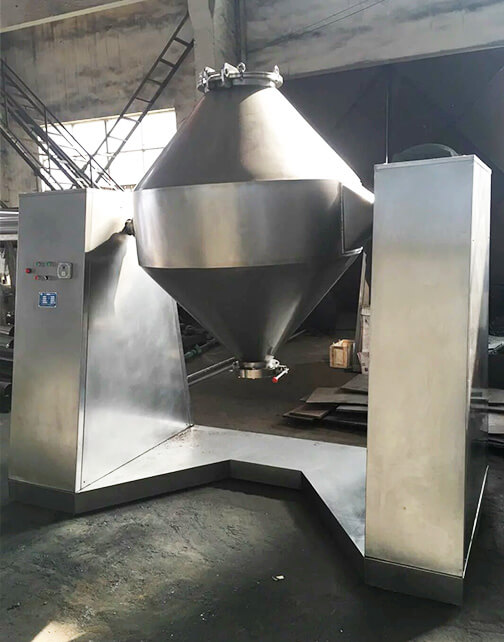

Double Cone Mixer

Product introduction

W type Double Cone Mixer is a kind machine which can mix materials (powders and particles of relatively good fluidity) equally, it can shorten mixing period, lower energy consumption and guarantee product quality, which has played an important role in increasing production efficiency. Besides, the barrel of the mixer is made of stainless steel, which is well polished both inside and outside, so it has beautiful appearance and can be operated easily.

Working Principle:

The machine absorb foreign products advantage to design, because two barrels length are not same will not asymmetry ; when the mixer revolution , the raw material in barrel analysis and combination with different potential energy. The raw material spread mixing alternately , with the time go on , the raw material will mixed very well.

W type Double Cone Mixer is a kind machine which can mix materials(powders and particles of relatively good fluidity)equally, it can shorten mixing period, lower energy consumption and guarantee product quality, which has played an important role in increasing production efficiency. Besides, the barrel of the mixer is made of stainless steel, which is well polished both inside and outside, so it has beautiful appearance and can be operated easily.

Double Cone Mixer

Technical parameter

Model	Capacity (kg/time)	Total volume (L)	Minxing time (min)	Power (kw)	Drum speed (r/min)	Dimension (mm)


W-200	64	200	6-10	1.1	12	15007001650
W-300	96	300	6-10	1.5	12	16858001850
W-500	160	500	6-10	2.2	12	19108001940
W-1000	320	1000	6-10	4	12	270010002370
W-1500	480	1500	6-10	5.5	12	290010002600
W-2500	800	2500	6-10	611	10	338619003560
W-4000	1280	4000	8-12	15	10	486024004000

Product application

The machine is applied by the industries of pharmaceutics,chemical and foodstuff,served as the pretreatment coordinated machine for fine grinding process.The machine can process any material without being limited by the viscosity,hardness,softness or fiber shape of the said materials.
