High Efficient Dry Powder Mixer Equipment

Product introduction

Advantages:

01Mirror polished of inner and outer shell to meet cGMP standard.

02No blind angle in the V-shells, no accumulation of materials, high speed I-bar, efficient and short mixing time.

03Mixing uniformity can reach 99%.

04Rotating valve is equipped for discharging.

05Fully integrated motors and controls.

06Can work with vacuum feeding system to create dust-free working condition.

Working Principle:

V blender mix the material by two asymmetrical cylinder,and the gravity of material,the material is constantly gathered and scattered in the cylinder by its rotation. Usually it need to take about 5-15 minutes to make the two or more materials fully mixing uniformity.

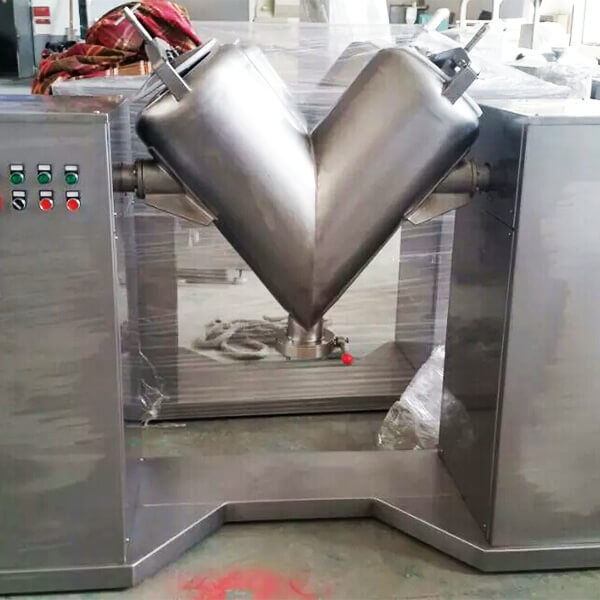

V Type Mixer

Technical parameter

Model	Total Volume (L)	Loading Capacity (kg/batch)	Rotating Height (mm)	Mixing Time (minutes)	Power (kw)
Model	Total Volume (L)	Loading Capacity (kg/batch)	Rotating Height (mm)	Mixing Time (minutes)	Power (kw)
V-50	50	12	1600	6-10	0.55
V-200	200	48	1750	6-10	1.1
V-300	300	72	1970	6-10	1.5
V-500	500	120	2270	6-10	2.2
V-1000	1000	240	2630	6-10	4
V-1500	1500	360	2820	6-10	5.5
V-2000	2000	480	3050	6-10	7.5
V-2500	2500	600	3150	8-12	11
V-3000	3000	720	3310	8-12	11

Product application

V mixer/V blender is designed for mixing two or more dry power or granule raw materials, such as pharmaceutical industry, chemical industry, foodstuff industry and so on.
