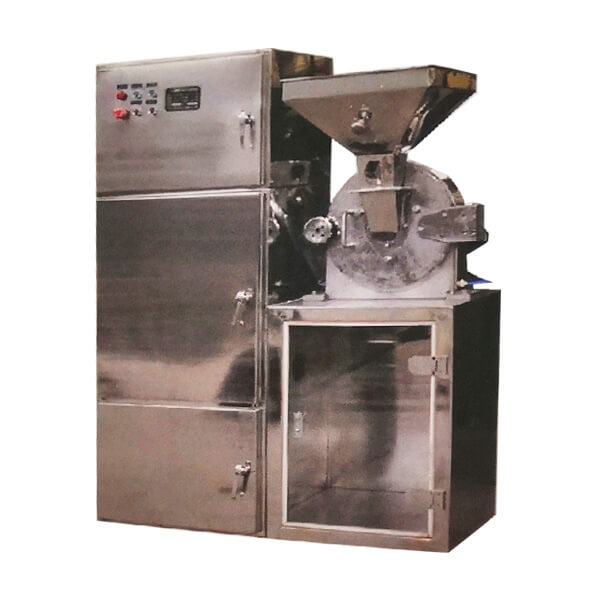

Stainless steel Universal Dust Collecting Crushing Machine

Product introduction

The machine is made up of crushing chamber, cyclone separator, pulse dust removing box and fan.The machine uses the high- speed relative motion of the active fluted disc and the fixed fluted disc to impact and crush the raw material. The different size of granules can be acquired by changing different screen.

The whole machine is designed according to GMP standard and is made of stainless steel. The machine has the advantages of simple structure, low energy consumption, easy cleaning and is an ideal crushing equipment.

The crushed material goes through the cyclone separator by the rotating centrifuge force and the suction of fan.Dust is cleledble puise dust collecting box.

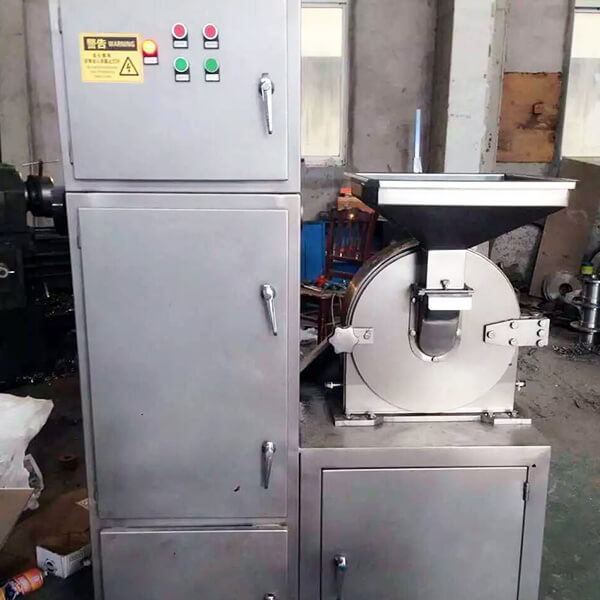

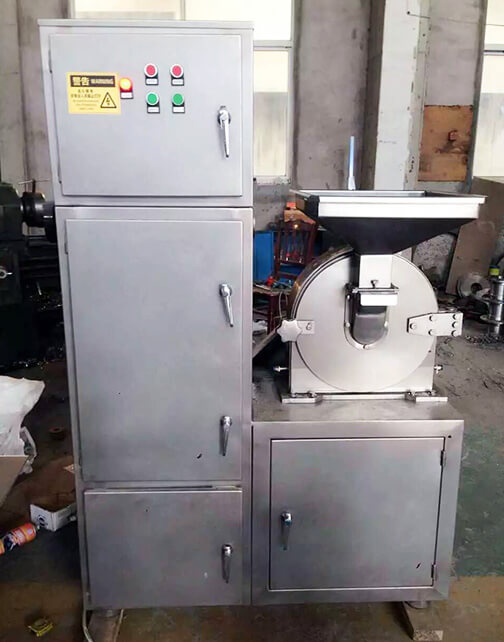

Universal Crusher With Dust Removal

Technical parameter

Model	Capacity	Spindle speed(r/min)	feeding size	Fineness of products	Motor power	Dust collection power(kw)	Weight	Szie
JY-20B	40-200KG/H	4500	<10mm	20-120mesh	4kw	1.5	400kg	125010001900mm
JY-30B	100-400KG/H	3800	<12mm	20-120mesh	7.5kw	2.2	650kg	135011002000mm
JY-30B	160-800KG/H	3400	<15mm	20-120mesh	11kw	3	780kg	150012502100mm

Product application

The machine is widely used in the crushing of materials in the pharmaceutical, food, chemical and other industries, especially suitable for production line.
