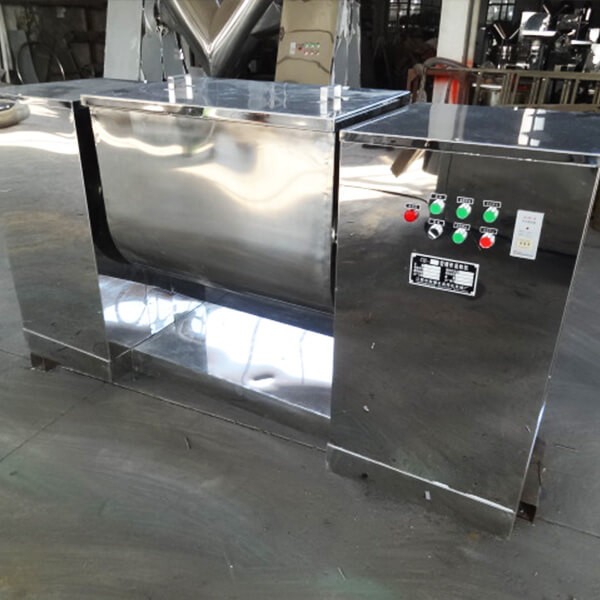

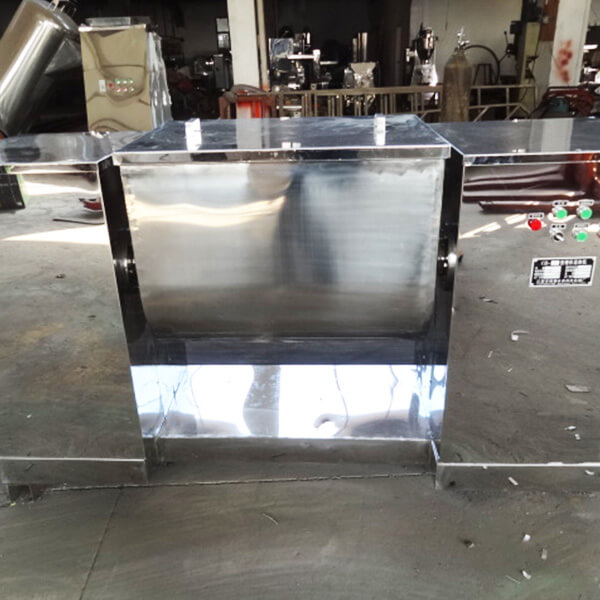

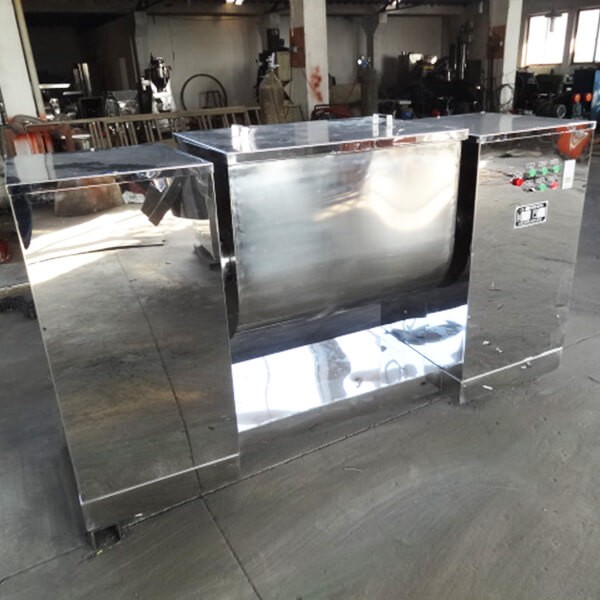

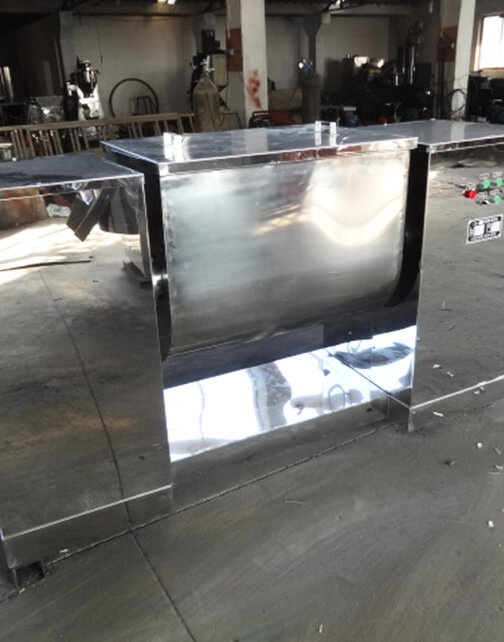

Trough-shaped Mixer

Product introduction

Advantages:

01The machine has the advantages of compact structure, simple operation, beautiful appearance, small occupation area, convenient cleaning, good mixing effect, etc.

Working Principle:

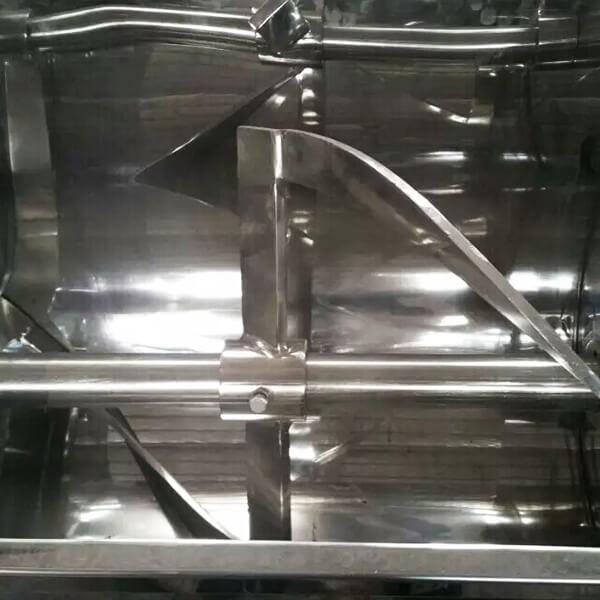

The machine makes S type stirring paddle rotate by mechanical transmission, pushes the material turn and mix evenly, operating with electrical control, it can set the mixing time, then automatically shut down, electric charging, improve the mixing quality of each batch of materials and achieve a high degree of uniformity of the mixture.

Trough-shaped Mixer

Technical parameter

Model	Total volume （L）	Production capacity (kg/batch)	Mixing time (min)	Mixing motor (kw)	Discharging motor (kw)	Mixing speed (r/min)	Overall dimension (mm)	Weight (kg)
CH-50	50	20	8-12	1.5	0.37	24	1200×500×950	200
CH-100	100	40	8-12	2.2	0.55	24	1400×580×1000	250
CH-150	150	60	8-12	3	0.55	24	1685×600×1000	300
CH-200	200	80	8-12	4	0.75	24	1850×600×1000	380
CH-300	300	120	8-12	5.5	1.1	24	2160×700×1250	550
CH-400	400	160	8-12	5.5	1.1	24	2280×700×1250	680
CH-500	500	200	8-12	7.5	1.5	24	2450×700×1250	780
CH-600	600	240	8-12	7.5	1.5	24	2500×900×1350	900
CH-800	800	320	8-12	11	2.2	24	2750×1100×1450	1200
CH-1000	1000	400	8-12	15	3	24	2850×1200×1550	1420

Product application

CH series trough-shaped mixer is widely used for mixing of dry granulate material and paste material in pharmaceutical, food-stuff, forage, chemical and other industries.It is especially suitable for mixing raw materials that have high requirement in uniform and high difference in specific gravity.
