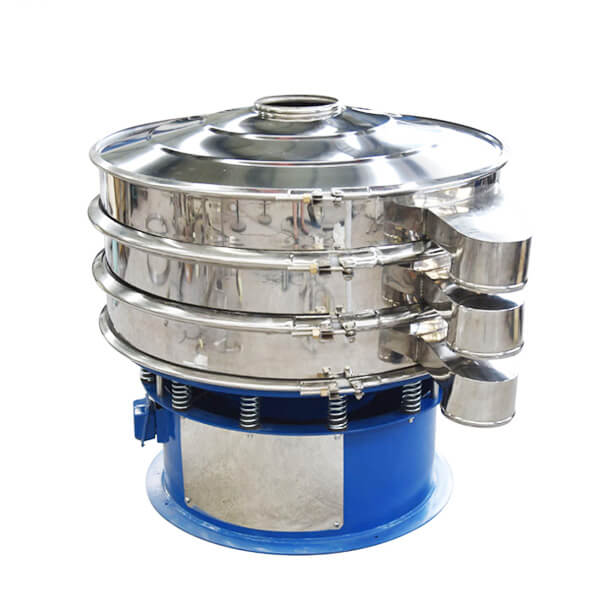

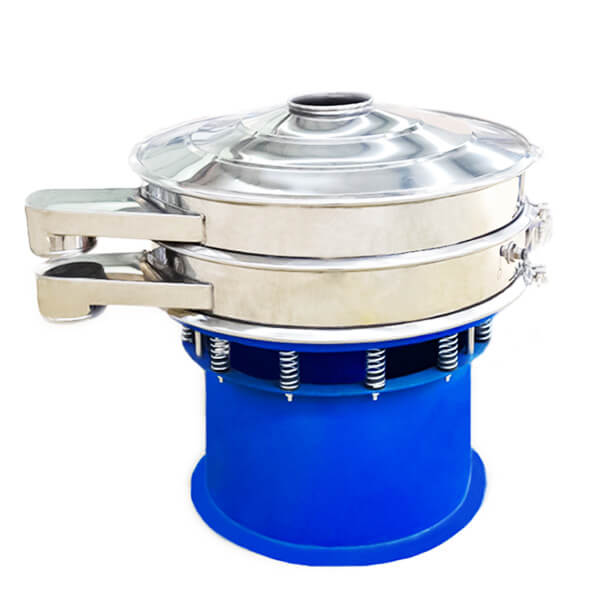

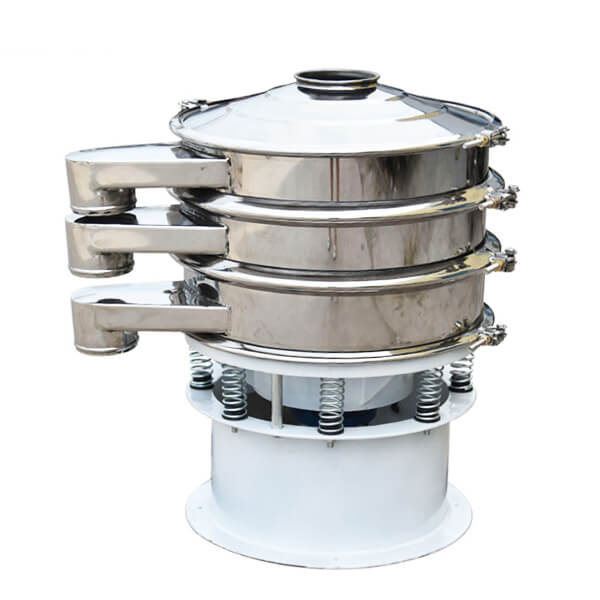

Flour Circle Machine Stainless Steel Rotary Circular Vibrator Screen
Contact parts of this sifter is made of 304 stainless steel, which is not easy to rust (Can also be designed with totally 201, 304 or 316 stainless steel accordingly).
Able to separate different materials including granules, powder, liquid, salt, sand, chemicals, etc.
- WhatsApp / Wechat / Phone:+86 13949003141
- E-mail:jack@9usemachine.com
Product introduction
Automatic rotary vibrating sifter is a round shape sieving equipment with the functions of grading,impurity removing and liquid separating.Under the vibrating movement of motor,it can reach a good sieving effect.
Main features:
01Contact parts of this sifter is made of 304 stainless steel,which is not easy to rust(Can also be designed with totally 201,304 or 316 stainless steel accordingly).
02Able to separate different materials including granules,powder,liquid,salt,sand,chemicals,etc.
03Mesh size can be designed from 5-500 mesh.
04Sealed environment which can avoid materials split or float outside.
05Small in size and easy to move,convenient for install and clean.
06The outlet hole can be adjusted 360 degrees,easy for separation.
07Easy to change mesh,which just only need 3-5 minutes because of the unique screen.
08Can be designed with different layers according to your materials.
09Good quality vibrating motor to improve separating efficiency and save energy.
Technical parameter
Model | Power/kw | Sieve diameter | Size(L*W*H/mm) | Layer | |
JY-400 | 1S | 0.25 | 360 | 580*580*560 | 1 |
2S | 580*580*670 | 2 | |||
3S | 580*580*780 | 3 | |||
JYP-600 | 1S | 0.55 | 560 | 800*800*750 | 1 |
2S | 800*800*890 | 2 | |||
3S | 800*800*1030 | 3 | |||
JY-800 | 1S | 0.75 | 760 | 900*900*750 | 1 |
2S | 900*900*890 | 2 | |||
3S | 900*900*1030 | 3 | |||
JY-1000 | 1S | 1.1 | 930 | 1160*1160*810 | 1 |
2S | 1160*1160*950 | 2 | |||
3S | 1160*1160*1090 | 3 | |||
JY-1200 | 1S | 1.5 | 1130 | 1360*1360*885 | 1 |
2S | 1360*1360*1050 | 2 | |||
3S | 1360*1360*1275 | 3 | |||
JY-1500 | 1S | 2.2 | 1430 | 1850*1850*990 | 1 |
2S | 1850*1850*1185 | 2 | |||
3S | 1850*1850*1380 | 3 | |||
JY-1800 | 1S | 2.2 | 1730 | 2200*2200*1050 | 1 |
2S | 2200*2200*1250 | 2 | |||
3S | 2200*2200*1450 |
Product application
