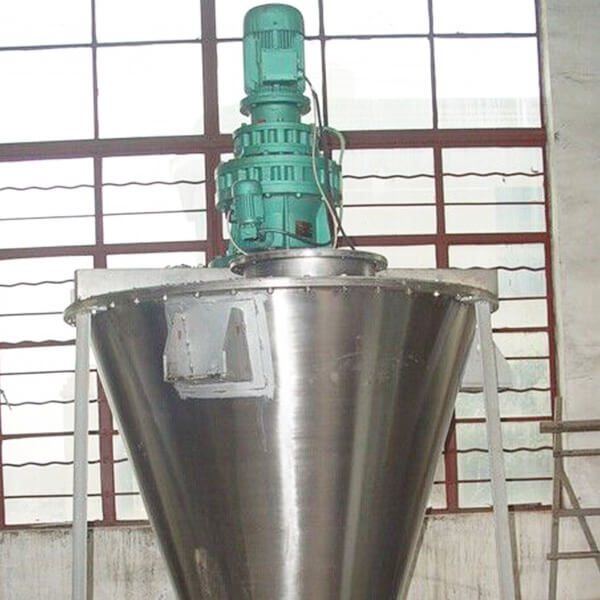

Double Screw Vertical Dry Powder Conical Mixer
The DSH-type cantilever asymmetric double helix prototype mixer is the most widely used, most demanded and most novel type of machine in many mixer.
- WhatsApp / Wechat / Phone:+86 13949003141
- E-mail:jack@9usemachine.com
Product introduction
The DSH-type cantilever asymmetric double helix prototype mixer is the most widely used, most demanded and most novel type of machine in many mixer.
Two asymmetrical spirals rotates during working, and revolves around the cone wall to promote the omni-directional flow of material in the machine and achieve high-precision uniform mixing in a short time.
Technical parameter
| Model/Item | Full volume (m3) | Each batch of mixed material specific gravity 1.0 (T) | Working condition | Power(KW) | Mixed uniformity |
| 100 | 0.1 | 0.06 |
1.Normal temperature 2.Atmospheric pressure or micro pressure 3. Dust seal |
1.5 | ≥95% |
| 200 | 0.2 | 0.12 | 2.2 | ||
| 300 | 0.3 | 0.18 | 3 | ||
| 500 | 0.5 | 0.3 | 4 | ||
| 1000 | 1 | 0.6 | 5.5 | ||
| 2000 | 2 | 1.2 | 7.5 | ||
| 3000 | 3 | 1.8 | 11 | ||
| 4000 | 4 | 2.4 | 15 | ||
| 5000 | 5 | 3.6 | 18.5 | ||
| 6000 | 6 | 4.8 | 22 |
Product application
It is widely used in chemical, pesticides, dyes, medicine, food, feed, feed additives, petroleum, metallurgy, mining and other industries in the powder and powder liquid mixing equipment.
