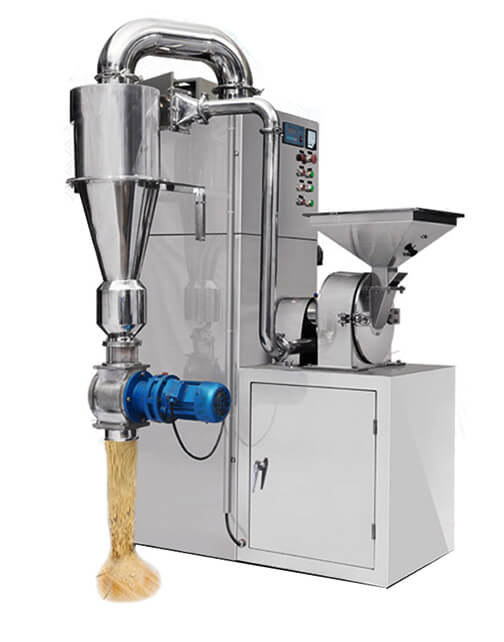

Chinese Professional Herb Medicine Grinder

Product introduction

Working Principle:

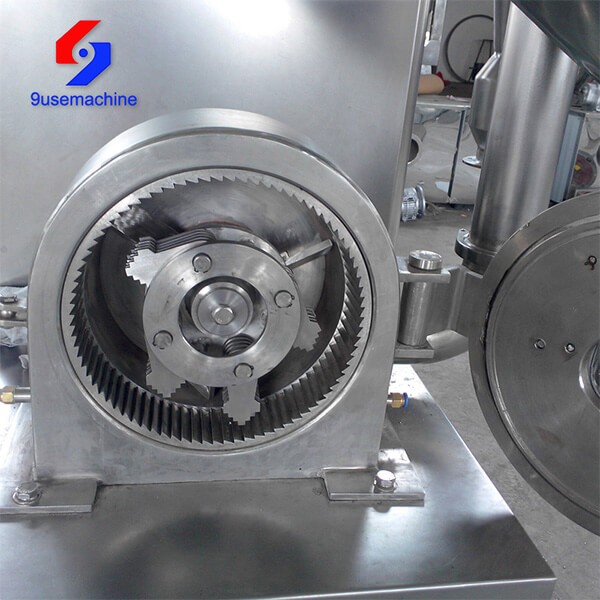

The machine consists of feeder, grading wheel, pulverizing blades, gears, pulverizing motor, discharging gate, fans, raw material collection box and dust collection box, etc. Any raw material, being fed into the grinding chamber through the upper feeder is pulverized by high- speed running blades. The fans will lead pulverized material from grinding chamber to discharge gate via negative pressure and the unpulverized material will be left to be pulverized.The dust from grinding is filtered and recycled via the cloth bag or filtered by the dust absorption box.The whole machine is designed according to GMP standard and is made of stainless steel. The machine improves the utilization of raw material and decreases the production cost.

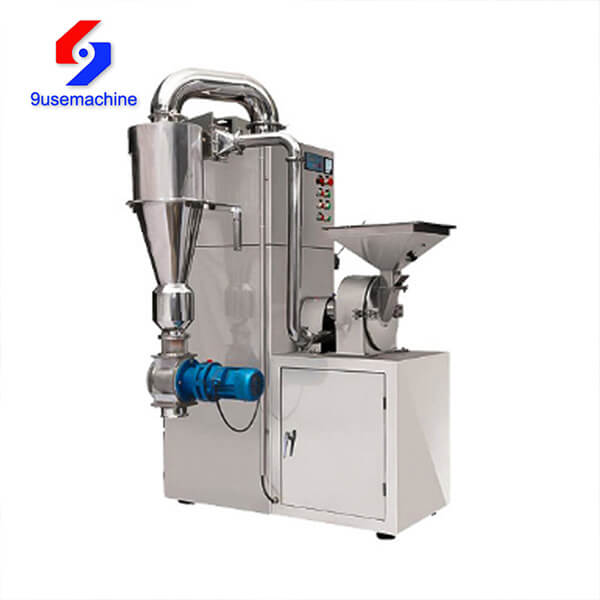

Superfine powder pulverizer grinding machines

Technical parameter

Model	Capacity (kg/h)	Spindle speed (r/min)	Feeding size (mm)	Fineness (mesh)	Power (kw)	Dust collector power (kw)	Weight (kg)	Dimension (mm)
ZFL20	10-150	5000	＜8	60-280	5.5	1.5	320	10008001600
ZFL30	20-300	4500	＜12	60-280	7.5	2.2	550	12008501780
ZFL40	50-500	4000	＜15	60-280	11	3	680	15009001950

Product application

The machine is widely used for material crushing in industries such as chemicals, foo stuff and pharmaceutics, etc. With the features of cool air and no sieve or screen, the machine is not limited by the viscosity, hardness, softness or fiber shape of the raw materials and has good effect to all materials, especially to those Chinese herbal medicines with fibers and those with oil Moreover, there is no dust lying around during productive process.
