Superfine Powder Pulverizer Grinding Machines
Simple structure, easy in installation and maintenance.
Adopting advanced world famous brand motor, electric parts, bearing and operation parts.

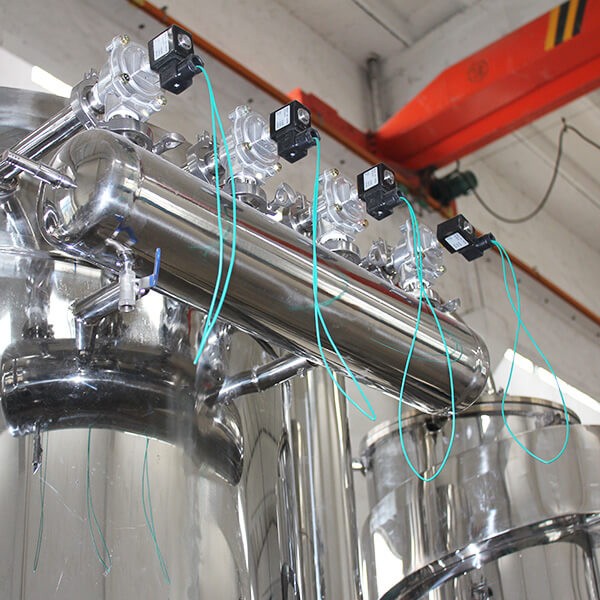

No dust during production, and dust can be collected in dust collecting box.
- WhatsApp / Wechat / Phone:+86 13949003141
- E-mail:jack@9usemachine.com
Product introduction

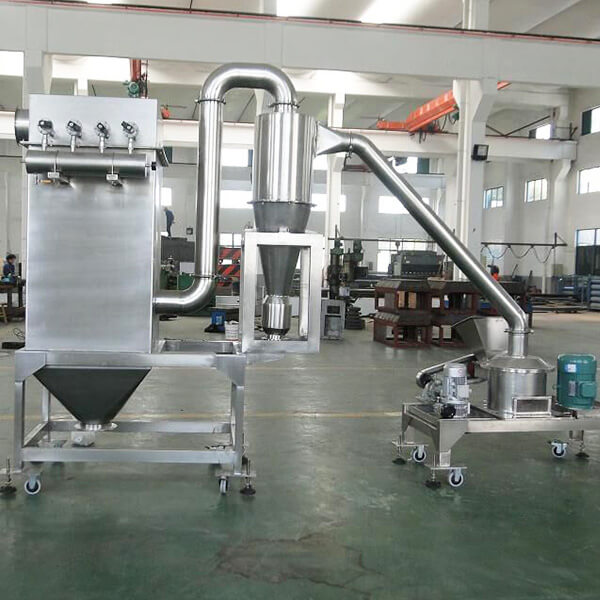

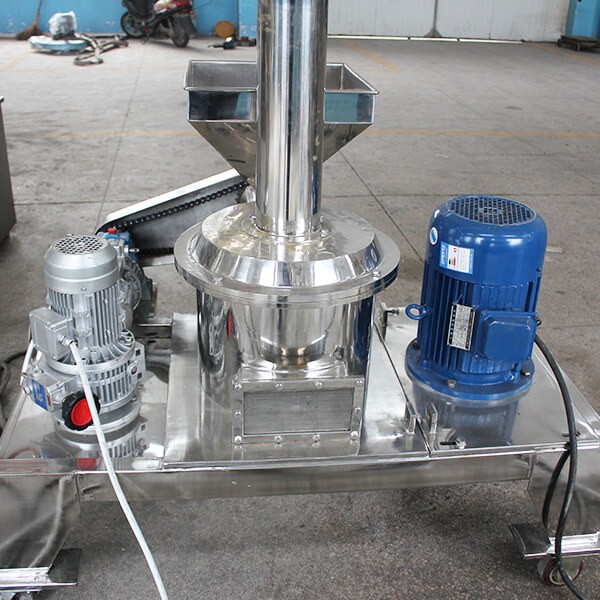

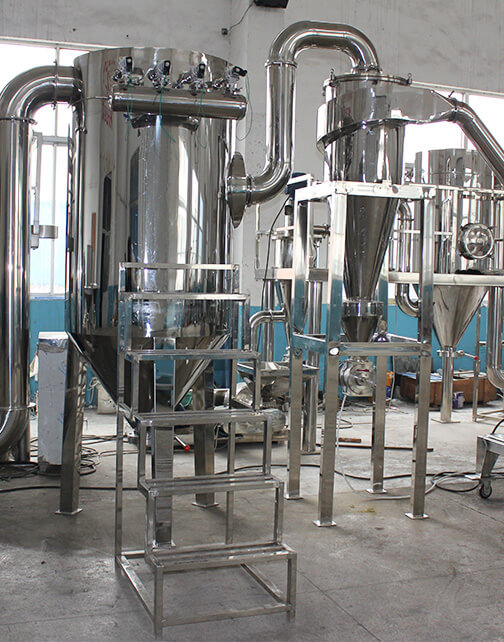

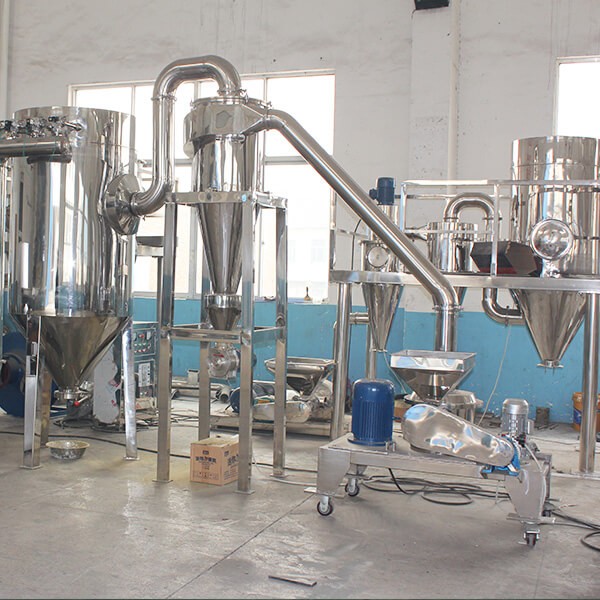

The machine is made up of three parts:main machine, auxiliary machine and electric control box. It has the properties of wind selection, having no sieve or net, and an even granularity of the processed material.
The production process going on continuously, the machine can undertake the grinding of chemical products. Food medcine, medicament, cosmetics, plastic, dyestuff, resin, cotourant, grain, etc.
Main Features:
01Simple structure, easy in installation and maintenance.
02Adopting advanced world famous brand motor, electric parts, bearing and operation parts.
03No dust during production, and dust can be collected in dust collecting box.
04No need screen, particle size can be changed by change speed; particle size varies from 80 to 500 mesh.
05Around mill chamber and bearing, there is water-cooling jacket to cool the machine.
Technical parameter
Model | JY-150 | JY-200 | JY-300 | JY-600 | JY-800 |
Capacity(kg/h) | 50-200 | 80-300 | 100-800 | 200-1200 | 500-1500 |
Input granule size (mm) | <10 | <10 | <15 | <18 | <18 |
Out powder size (mesh) | 80-450 | 80-450 | 80-450 | 80-450 | 80-450 |
Total motor power (KW) | 13.5 | 17.5 | 46 | 84.15 | 100.4 |
Cutter rotating speed (rpm) | 6000 | 4800 | 3800 | 2800 | 2400 |
Overall size (L*W*H)(mm) | 4200*1200*2700 | 4700*1250*2900 | 6840*1300*3660 | 7500*2300*4530 | 8200*2500*4600 |
Weight(kg) | 1300 | 1700 | 2300 | 3200 | 3800 |
Product application
The production process going on continuously, the machine can undertake the grinding of chemical products. Food medcine, medicament, cosmetics, plastic, dyestuff, resin, cotourant, grain, etc. This machine is suitable for grinding powder.
