Food Industry Used Powder Grinding Machine For Spice/Herb/ Grain
This machine applies the relative motion between the high-speed running motive spider and stationary, mutual striking among materials to spider to impact, shred the material, thus to reach to objective of pulverizing material.
- WhatsApp / Wechat / Phone:+86 13949003141
- E-mail:jack@9usemachine.com
Product introduction

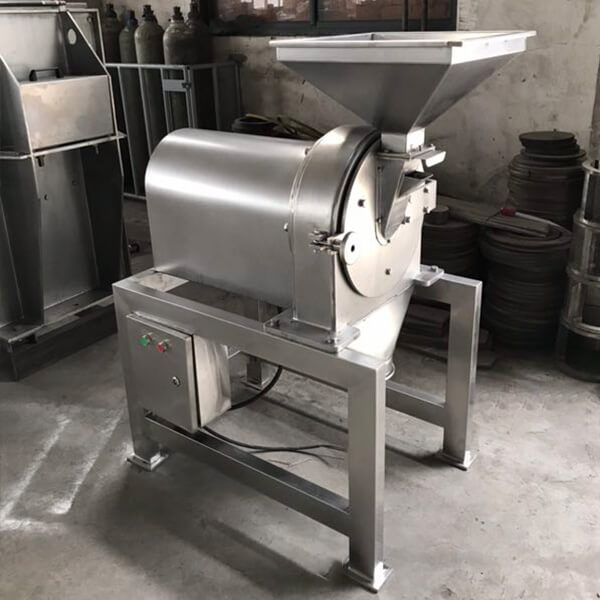

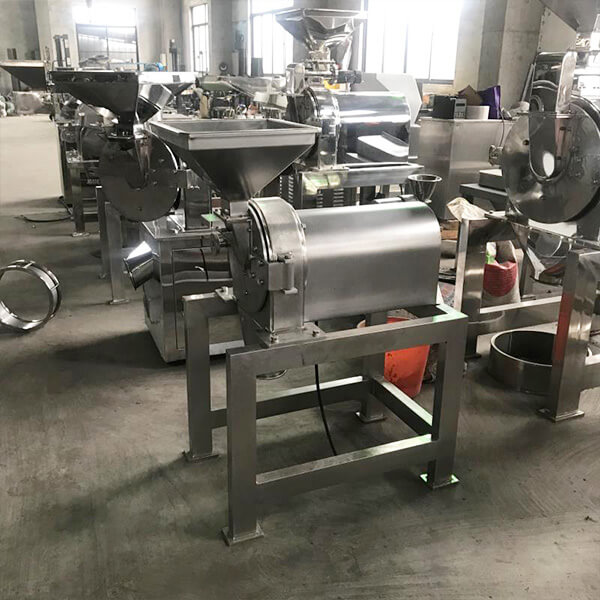

This machine applies the relative motion between the high-speed running motive spider and stationary, mutual striking among materials to spider to impact, shred the material, thus to reach to objective of pulverizing material. This machine has simple structure, stable option, low noise and good pulverizing effect Metarial will be discharged outsides directly from pulverizing room after pulverization. Coarse pulverization or fine pulverization shall be got by selecting different sieves of different diameter.
Technical parameter
Model | WF-200 | WF-300 | WF-400 | WF-500 | WF-600 | WF-800 | WF-1000 |
Production Capacity(kg/h) | 20-50 | 30-100 | 50-300 | 80-400 | 80-400 | 150-1000 | 200-2000 |
Feeding Size(mm) | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 |
Output Size (mesh) | 10-120 | 10-120 | 10-120 | 10-120 | 10-120 | 10-120 | 10-120 |
Power (KW) | 4 | 7.5 | 1.1 | 15 | 22 | 37 | 45 |
Main Speed (r/min) | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 |
Overall Size (L*W*H)(mm) | 780×600×1200 | 900×650×1350 | 1000×780×1500 | 1100×850×1650 | 1200×980×1850 | 1300×1050×2000 | 1500×1200×2200 |
Weight(kg) | 130 | 200 | 350 | 500 | 800 | 1000 | 1500 |
Product application
This machine is used in medicine , chemical industry, food, agriculture and foodstuff, especially suitable for dry brittle material.
