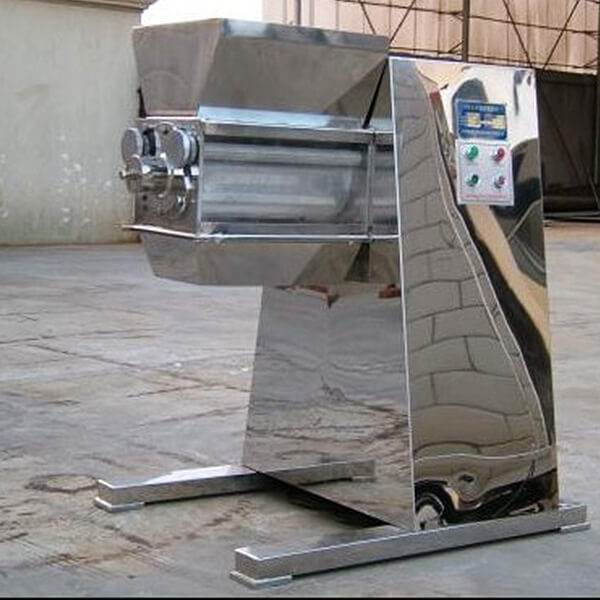

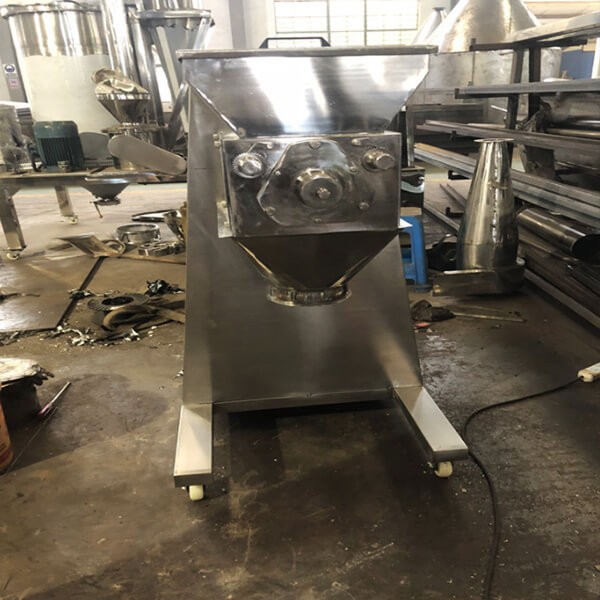

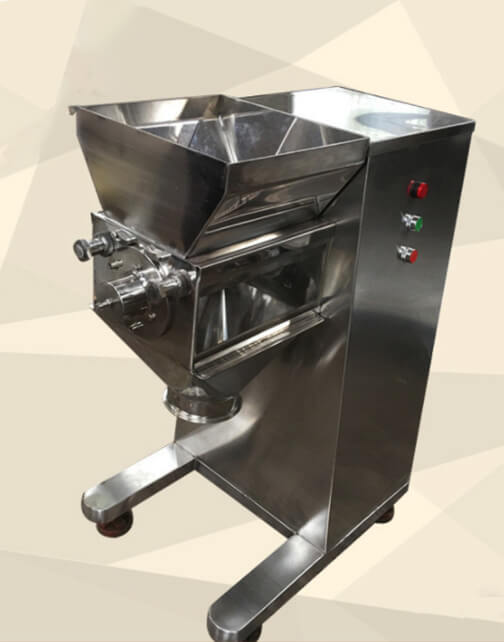

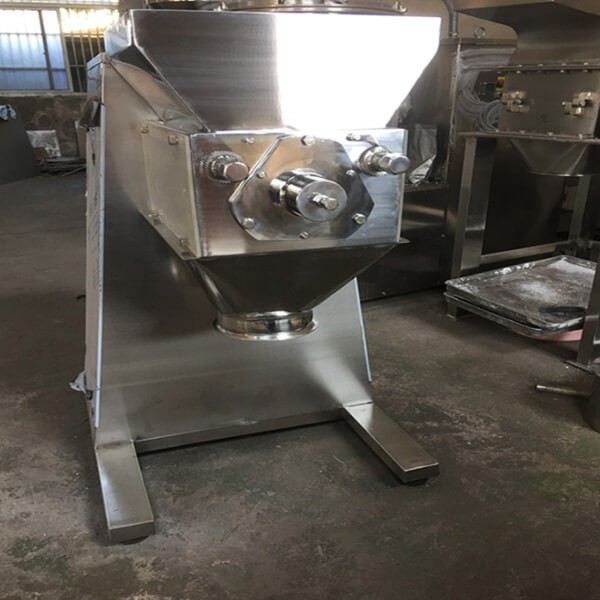

Swing Granulator

Product introduction

Working Principle:

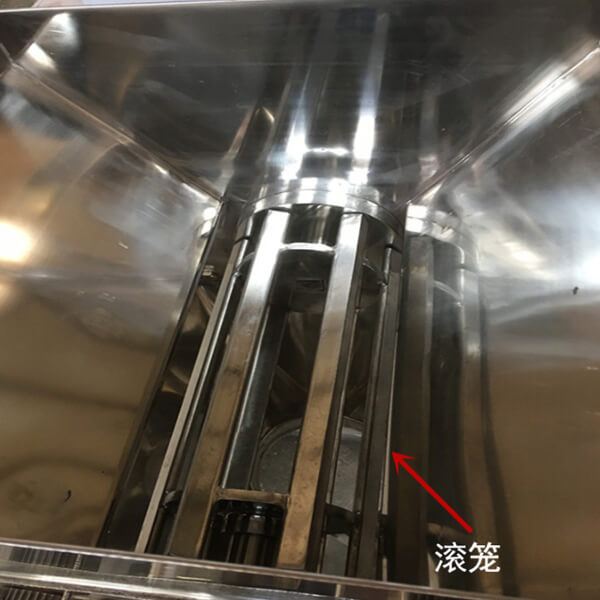

The machine makes roller to rotate continuously under the effect of motor, triangular belt wheel, speed reducer transmission, eccentric crank shaft and lifting rack.Material does continuous movement and be pushed into the screen by roller.The production capacity of the material depends on moisture, type and viscosity of materials and the difference of mesh.The machine can make different kinds of granule.

Superfine powder pulverizer grinding machines

Technical parameter

Model	Capacity (kg/h)	Power (kw)	Roller speed (rpm)	Awing angle (°)	Roller diameter (mm)	Granule diameter (mm)	Weight (9kg)	Dimension (mm)
Model	Capacity (kg/h)	Power (kw)	Roller speed (rpm)	Awing angle (°)	Roller diameter (mm)	Granule diameter (mm)	Weight (9kg)	Dimension (mm)
YK-100	30-200	1.1	55	360	100	0.5-8	280	7004001050
YK-160	100-300	2.2	55	360	160	0.5-8	380	10008001300
YK-250	150-400	5.5	55	360	250	0.5-8	550	13009201500
YK-320	200-600	7.5	55	360	320	0.5-8	800	140011501600

Product application

This machine is a special granulator that makes wet powder mixture go through the screen compulsively under the positive and negative rotation of the roller. The machine is widely used to granulate in pharmaceutical, chemical and foodstuff industry etc. After drying it can be used to suppress to different kinds of products. The machine can also be used for crushing agglomerate material.
