Hot Air Circulating Food Industrial Dryer Machine
Most of hot air circles in the sealed oven, high heating efficiency and energy-saving.
The drying machine is the universal drying equipment, equipped with noise elimination, low noise and thermal stable axial flow fan and automatic temperature control system.
- WhatsApp / Wechat / Phone:+86 13949003141
- E-mail:jack@9usemachine.com
Product introduction
Most of hot air circles in the sealed oven,high heating efficiency and energy-saving.
The drying machine is the universal drying equipment,equipped with noise elimination,low noise and thermal stable axial flow fan and automatic temperature control system.
Totally enclosed circulatory system improves the thermal efficiency from 3-7% of the traditional drying oven to 35-40% of the present ones. And the highest heat efficiency can be up to 70%.
The series of drying oven is the more advanced equipment up to international standard.
Features:
01Low working noise ,stable working condition,automatic temperature control system,easy to install and maintain.
02Automatic temperature control system,easy to install and maintain.
03The drying oven can be made of carbon steel, stainless steel according to the required.
04The final water content can be <1%.
05Most of hot air circles in the sealed oven,high heating efficiency and energy-saving.
06Having forced ventilation function and equipped with adjustable wind separator plates, high drying evenness.
07Food dehydrator machine adopts special design, making the heating efficiency 3-7% increase compared to the current 35-45%, the highest thermal efficiency can reach 50%.
08Food dehydrator machine is widely used in food processing industry. It can dry various materials such as fish, vegetables, fruits, herbs, mushroom, sea cucumber, etc.
09Food dehydrator machine is easy to operate and easy to maintain. The main machine material is stainless steel or painted carbon steel. It can be used for a long time.
10Having forced ventilation function and equipped with adjustable plates, drying evenly.
11Temperature allowed with this fruit vegetable dryer heat 50°C-140°C,the maximum is 150°C. Electricity heat 50-350°C.
12You can freely choose steam,electricity,gas as the heating source.
Technical parameter
| Model | Number of Trolley | Number of Plates | Motor | Area of the plates | Capacity each batch | Dimension (m) | Heating source |
| JYM-1 | 1 | 24 | 9kw | 5.76m² | 120 kg | 1.4*1.2*2.2 | Electricity /gas/coal |
| JYM-2 | 2 | 48 | 12kw | 11.52m² | 240kg | 2.2*1.2*2.2 | |
| JYM-4 | 4 | 96 | 30kw | 23.04 | 480kg | 2.1*2.0*2.3 | |
| JYM-8 | 8 | 192 | 45 kw | 46.08m² | 960 kg | 4.2*2.0*2.3 |
Product application

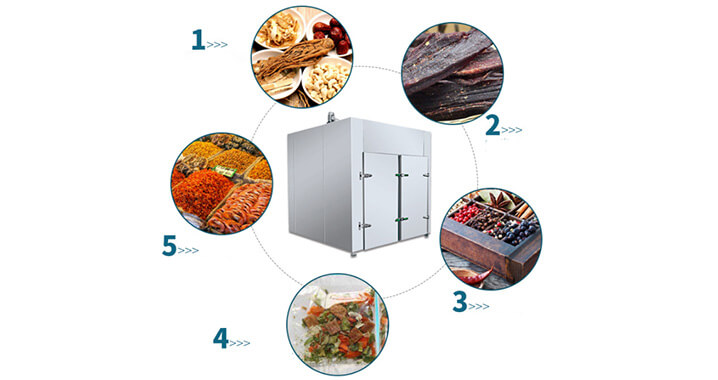

Our this series stainless steel multi-function drying machine can dry all kinds of materials, such as meat, vegetables, fruits, spice, sea cucumber, herbs, onions, gingers, tea leaves etc.
Used for drying Chinese herbal pieces, dissolved medicines, powder, crude drug, drug packing bottle, pigment, dyestuff, dehydrated vegetables, food, plastic resin, paper, leather, wool, electrical apparatus element, salts, catalyst etc.
Suit for factory, restaurant, school, farm and so on.
